How to Repair A/t System of Hyundai Accent

How to Repair A/T System of Hyundai Accent





Accent 1.4 DOHC  Automatic Transaxle System





TROUBLESHOOTING

clip_image002

DIAGNOSITC TORUBLE CODES (INSPECTION PROCEDURE)

Check the Diagnostic Trouble Codes

1.

Turn the ignition switch to OFF.

2.

Connect the Hi-scan tool to the DLC connector for diagnosis.

3.

Turn the ignition switch to ON.

4.

Check the diagnostic trouble codes using the Hi-scan tool.

5.

Read the output diagnostic trouble codes. Then follow the remedy procedures according to the "DIAGNOSTIC TROUBLE CODE DESCRIPTION" on the following pages.

clip_image003



A maximum of 10 diagnostic trouble codes (in the sequence of occurrence) can be stored in the Random Access Memory (RAM) incorporated within the control module.

The same diagnostic trouble code can be stored one time only.

If the number of stored diagnostic trouble codes or diagnostic trouble patterns exceeds 10, already stored diagnostic trouble codes will be erased in sequence, beginning with the oldest.

Do not disconnect the battery until all diagnostic trouble codes or diagnostic trouble patterns have been read out, because all stored diagnostic trouble codes or diagnostic trouble patterns will be cancelled when the battery is disconnected.

All diagnostic trouble codes are deleted from memory the 200th time the ATF temperature reaches 50°C(122°F) after memorization of the most recent diagnostic code.

6.

Delete the diagnostic trouble code.

7.

Disconnect the Hi-scan tool.

clip_image003[1]



DTC cleaning should only be done with the scan tool.

Diagnostic trouble code table

No.

Code

Item

Remark

1

P0707

TRANSAXLE RANGE SWITCH CIRCUIT NO INPUT

2

P0708

TRANSAXLE RANGE SWITCH CIRCUIT MULTI - INPUT

3

P0711

TRANSAXLE FLUID TEMPERATURE SENSOR RATIONALITY

4

P0712

TRANSAXLE FLUID TEMPERATURE SENSOR CIRCUIT LOW INPUT

5

P0713

TRANSAXLE FLUID TEMPERATURE SENSOR CIRCUIT HIGH INPUT

6

P0716

A/T INPUT SPEED SENSOR(PG-A)-TOO MAX

7

P0717

A/T INPUT SPEED SENSOR(PG-A) CIRCUIT - OPEN or SHORT(GND)

8

P0722

A/T OUTPUT SPEED SENSOR(PG-B) CIRCUIT - OPEN or SHORT(GND)

9

P0731

GEAR 1 INCORRECT RATIO

10

P0732

GEAR 2 INCORRECT RATIO

11

P0733

GEAR 3 INCORRECT RATIO

12

P0734

GEAR 4 INCORRECT RATIO

13

P0741

TORQUE CONVERTER CLUTCH STUCK OFF

14

P0742

TORQUE CONVERTER CLUTCH STUCK ON

15

P0743

TCC CONTROL SOLENOID VALVE CIRCUIT - OPEN or SHORT(GND)

16

P0745

PRESSURE CONTROL SOLENOID VALVE-A CIRCUIT - OPEN or SHORT(GND)

17

P0750

SHIFT CONTROL SOLENOID VALVE-A CIRCUIT - OPEN or SHORT(GND)

18

P0755

SHIFT CONTROL SOLENOID VALVE-B CIRCUIT - OPEN or SHORT(GND)

19

P0760

SHIFT CONTROL SOLENOID VALVE-C CIRCUIT - OPEN or SHORT(GND)

20

P0775

PRESSURE CONTROL SOLENOID VALVE-B CIRCUIT - OPEN or SHORT(GND)

21

P1709

KICKDOWN SERVO SWITCH CIRCUIT - OPEN or SHORT

22

U0001

CAN BUS OFF

23

U0100

CAN TIME OUT



clip_image003[2]



D/C : Damper clutch

PG-A : Input shaft rotation speed sensor

PG-B : Output shaft rotation speed sensor

PCSV : Pressure control solenoid valve

SCSV : Shift solenoid valve

Check the control system (using the Hi-scan tool)

Diagnosis items

Checking procedures

Probable cause

Check conditions

Normal value

Fluid temperature sensor

Engine doesn't operate before starting

Equivalent to outside air temperature

-

Malfunction of the fluid temperature sensor or the circuit harness

While warming up engine

Gradual increase

After warming up engine

80~110°C
(176~230°F)

Kickdown servo switch

"L"range : Idling

ON

-

Malfunction of the kickdown servo adjustment

-

Malfunction of the kickdown servo switch or the circuit harness

-

Malfunction of the kickdown servo system

"D"range :1st or 3rd gear

ON

"D"range :2nd or 4th gear

OFF

Ignition signal

Engine rpm

"N"range: Idling

650-900rpm

-

Malfunction of the ignition system

-

Malfunction of the ignition signal pick-up circuit

"N"range, 2500rpm
(Tachometer)

2400-2600rpm

Idling switch

Accelerator pedal fully released

ON

-

Malfunction of the TPS adjustment

-

Malfunction of the TPS or the circuit harness

Press accelerator pedal slightly

OFF

Air conditioning relay signal

"D"range: Air conditioning ON

ON

-

Malfunction of the air conditioning power relay circuit harness

"D"range: Air conditioning OFF

OFF

Transaxle range switch

"D"range: Idling

C(creep)

-

Malfunction of the TCM

-

Malfunction of the idling switch system

-

Malfunction of the inhibitor switch system

-

Malfunction of the TPS system

"L"range: Idling

1st gear

"2"range: 2nd gear

2nd gear

"D"range: Overdrive switch is turned OFF, 3rd gear

3rd gear

"D"range: Overdrive switch is turned ON, 4th gear

4th gear

Pulse generator-A

Turbine rpm

"D"range: Engine stopped

0rpm

-

Malfunction of the pulse generator-A or the circuit harness

-

Incoming noise from outside

"D"range:Driving at 50km/h(31mph) in 3rd gear

1600~2000rpm

"D"range:Driving at 50km/h(31mph) in 4th gear

1100~1400rpm

Pulse generator-B

Output shaft RPM sensor

"D"range: Engine stopped

0rpm

-

Malfunction of the pulse generator-B or the circuit harness

-

Incoming noise from outside

"D"range:Driving at 50km/h(31mph) in 3rd gear

1600~2000rpm

"D"range:Driving at 50km/h(31mph) in 4th gear

1600~2000rpm

Overdrive switch

Overdrive switch is turned ON

OD:ON

-

Malfunction of the overdrive switch or the circuit harness

Overdrive switch is turned OFF

OD:OFF

Inhibitor switch

Shift select lever to "P"range

P

-

Malfunction of the inhibitor switch adjustment

-

Malfunction of the inhibitor switch or the circuit harness

-

Malfunction of the manual control cable

Shift select lever to "R"range

R

Shift select lever to "N"range

N

Shift select lever to "D"range

D

Shift select lever to "2"range

2

Shift select lever to "L"range

L

Vehicle speed sensor

Keep vehicle stopped

0km/h

-

Malfunction of the vehicle speed sensor if high speed signal is delivered while vehicle is stopping

-

In other cases, malfunction of the vehicle speed sensor or circuit harness

Driving at 30km/h(19mph)

30km/h(19mph)

Driving at 50km/h(31mph)

50km/h(31mph)

Pressure control solenoid valve duty(PCSV duty)

"D"range : Idling

60~80%

-

When accelerator pedal is slightly pressed while idling in "D"range, duty should become100%

-

Malfunction of the TCM

-

Malfunction of the TPS system

-

Malfunction of the idling switch system

"D"range: 1st gear

100%

"D"range: During shift

Varies with condition

Damper clutch slip rpm

Turbine rpm

"D"range: 3rd gear, 1500rpm
(Tachometer)

200~300rpm

-

Malfunction of the damper clutch

-

Malfunction of the ignition signal wire or pulse generator-B system

-

Abnormality transaxle fluid pressure

-

Malfunction of the damper clutch solenoid valve

"D"range: 3rd gear, 3500rpm
(Tachometer)

0rpm

DCCSV duty

"D"range: 3rd gear, 1500rpm
(Tachometer)

0%

-

Malfunction of the TCM

-

Malfunction of the TPS system

-

Malfunction of the pulse generator-B system

"D"range: 3rd gear, 2500rpm
(Tachometer)

Varies with load

Fluid leaks inspection

Check for leaks from the transmission. If there are leaks, it is necessary to repair or replace O-ring, seal packings, oil seals, plugs or other parts.

clip_image004

Transaxle fluid level inspection

1.

Park the vehicle at even straight surface.

2.

Before removing the oil level gauge, wipe all contaminants from around the oil level gauge.

3.

Set the select lever to the "P"position and engage the parking brake and then start the engine.

4.

Drive the vehicle until the fluid reaches normal.(80~90°C(176~194°F))

5.

Move the select lever through all positions. This will fill the torque converter with transaxle fluid. Set the select lever to the "N"(Neutral) position.

6.

Check that the fluid level is the "HOT" mark on the oil level gauge. If fluid level is low, add automatic transaxle fluiduntil the level reaches the "HOT" mark.


Automatic transaxle fluid :

GENUINE DIAMOND ATF SP-III or SK ATF SP-III

Quantity: 6.1ℓ (6.4 US qt, 5.4 lmp.qt)


clip_image003[3]



Low fluid level can cause a variety of abnormal conditions because it allows the pump to take in air along with fluid. Air trapped in the hydraulic system forms bubbles, which are compressible.

Therefore, pressures will be erratic, causing delayed shifting, slipping clutches and brakes, etc. Improper filling can also raise fluid level too high. When the transaxle has too much fluid, gears churn up foam and cause the same conditions which occur with low fluid level, resulting in accelerated deterioration of automatic transaxle fluid.

In either case, air bubbles can cause overheating, and fluid oxidation, which can interfere with normal valve, clutch, and brake operation.

Foaming can also result in fluid escaping from the transaxle vent where it may be mistaken for a leak.

Also check the condition of the transaxle fluid. If the fluid smells as if it is burning, it means that the fluid has been ontaminated by fine particles from the bushes and friction material, a transaxle overhaul may be necessary.

Inspect the condition of fluid on the oil level gauge. For the detail check, drain some of the oil fluid out of the pump and then inspect the condition of the oil fluid.

After checking, insert the oil level gauge into the oil filler tube securely.

clip_image005

When new, automatic transaxle fluid should be red, The red dve is added so the assembly plant can identify it as transaxle fluid and distinguish it from engine oil or antifreeze. The red dve, which is not an indicator of fluid quality, is not permanent. As the vehicle is driven the transaxle fluid will begin to look darker. The color may eventually appear light brown.

But, the transaxle should be overhauled under the following conditions.

If there is a "burning"door.

If the fluid the color has become noticeably blacker.

If there is a noticeably excessive amount of metal particle in the fluid.

Hydraulic pressure test

1.

Warm up the engine until the automatic transaxle fluid temperature is 80~100°C(176~212°F).

2.

Jack up the vehicle so that the wheels are free to turn.

3.

Connect the engine tachometer.

4.

Connect the oil pressure gauge(09452-21500) and the oil pressure gauge adapter(09452-21002, 09452-21001) to each pressure discharge port. But use the gauge(30kg/cm²) when measuring the reverse pressure, front clutch pressure and low&reverse brake pressure.

clip_image006

5.

If a value is outside the standard range, correct the problem while referring to the hydraulic pressure test diagnosis table.

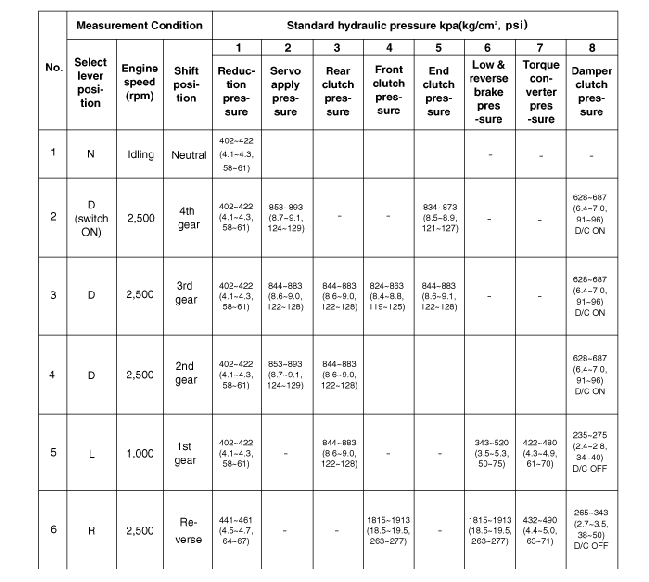

STANDARD HYDRAULIC PRESSURE TEST

clip_image007

clip_image003[4]



-

"-" is 0.2(0.3)kg/cm² or less and "( )" is the reverse.

-

SW-ON : Turn the overdrive control switch ON.

-

SW-OFF : Turn the overdrive control switch OFF.

-

The hydraulic pressure may be more than standard value at the ambient temperature.

DRIVE SHAFT OIL SEALS REPLACEMENT

1.

Disconnect the drive shaft from the transaxle.

2.

Using a flat-tip (-) screwdriver, remove the oil seal(A).

clip_image008

3.

Apply a coating of the transaxle fluid to the lip of the oil seal.

4.

Using the special tool (09431-22100), tap the drive shaft oil seal into the transaxle.

clip_image009

TORQUE CONVERTER STALL TEST

This test measures the maximum engine speed when the select lever is at the "D" or "R" position and the throttle is fully opened to test the operation of the torque converter overrunning clutch and the holding ability of clutch and brake inthe transaxle.

clip_image003[5]



Do not let anybody stand in front of or behind the vehicle while this test is being carried out.

1.

Check the automatic transaxle fluid level and temperature and the engine coolant temperature.

A.

Fluid level : At the HOT mark on the oil level gauge

B.

Fluid temperature : 80~90°C (176~194°F)

C.

Engine coolant temperature : 80~90°C (176~194°F)

2.

Apply chocks to both rear wheels.

3.

Connect the engine tachometer.

4.

Pull the parking brake lever on, with the brake pedal fully depressed.

5.

Start the engine.

6.

Move the select lever to the "D" position, fully depress the accelerator pedal and take a reading of the maximum engine speed at this time.

clip_image010



The throttle should not be left fully open for any more than 5 seconds.

If carrying out the stall test two or more times, move the select lever to the "N" position and run the engine at 1,000 r/min to let the automatic transaxle fluid cool down before carrying out subsequent tests.

Move the select lever to the "R" position and carry out the same test again.


Stall rpm : 2,400~2,800 RPM


Auto Repair and Study Guide

7.

Moe the select lever to the "R" position carry out the same test again.

(1)

"Stall speed above specification in "D"

If stall speed is higher than specification, the rear clutch or overrunning clutch of the transaxle is slipping. In thiscase, perform a hydraulic test to locate the cause of slippage.

(2)

Stall speed above specification in "R"

If the stall speed is higher than specification, the front clutch of the transaxle or low&reverse brake is slipping. In this case, perform a hydraulic test to locate the cause of slippage.

(3)

Stall speed above specification in "D" and "R"

If the stall speed is lower than specification, insufficient engine output or a faulty torque converter is suspected.
